產品特色： 適合immuno-fluorescence, FISH, fixed cell GFP imaging, live cell GFP imaging, high speed calcium imaging, 3-D convoluteion, 4-D 5-D 6-D imaging, FRET, FARP, FILM等應用。 1.4百萬畫素的影像輸出大小，讓您的影像印刷後不再需要軟體運算來擴增影像大小，確保您擁有最佳的影像品質。 新一代的CCD技術，提高了量子效率，特別是在近紅外光譜的部份有顯著提昇，讓您揮別以往擷取近紅外光譜的惡夢。 IEEE1394a及LVDS雙介面，增加了安裝時的選擇性。

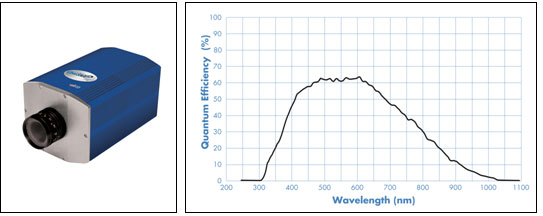

產品外觀：　　　　　　　　　 量子效率(敏感度)與波長關係圖：

產品規格：
CCD image sensor	SonyR ICX285; interline-transfer, progressive-scan device with microlenses
CCD format	1392 x 1040 imaging array; 6.45 x 6.45-μm pixels 8.98 x 6.71-mm imaging area (optically centered)
Grade	Sony Grade 0
System Gain	1 e-/ADU
Linear full well	16,000 e- (single pixel) 30,000 e- (2 x 2 binned pixel)
Read noise	4.5 e- rms @ 10 MHz 5.5 e- rms @ 20 MHz
Nonlinearity	<1%
Digitizer type 　　IEEE-1394a 　　LVDS	14 bits @ 20 MHz or 10 MHz (software selectable) 12 bits @ 20 MHz or 10 MHz (software selectable)
Frame readout	90 ms/frame
CCD temperature	-30?C (regulated)
Dark current	0.001 e-/p/s @ -30?C
Operating environment	0 to 30?C ambient, 0 to 80% relative humidity non-condensing
Dimensions	4.5" x 4.0" x 7.0" (6.5 lbs)
I/O	TTL (trigger/status): trigger, invert, inhibit, exposing, interline shift, frame readout 8-bit TTL (programmable) 8-bit DACs (two)
