Nikon DS-FI3高感度彩色攝影機

這是一台更高速更靈敏更精確的相機

Nikon DS-Fi3是最新一代CMOS彩色相機，擁有590萬畫素，新一代提供更快速的影像擷取、更優異的發色、更高的量子轉換效率，使得明視野觀察、DIC、相位差及螢光影像擷取更為便利

★Nikon DS-FI3主要特色：

新一代DS-Fi3使用高達590萬畫素的CMOS感光元件 (2880x 2048 像素. 在高解析度的影像擷取上, DS-Fi3最新的CMOS感光元件搭配USB3.0的高速傳輸, 提供了更有效率的影像擷取模式。

Tubular adenoma, HE staining (Objective: CFI Plan Apochromat λ 4x)

Photos courtesy of: Dr. Yasunori Ohta, Department of Pathology,

IMSUT Hospital, Institute of Medical Science, The University of Tokyo

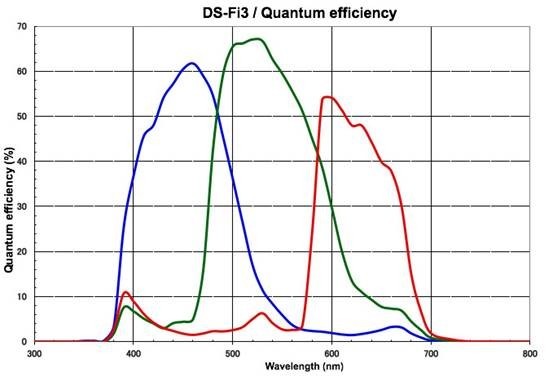

新一代DS-Fi3較前一代相比，提升了更高的量子轉換(quantum efficiency) 較低的讀出雜訊 ( readout noise)，提供更明亮、訊雜比更好的螢光影像。

Breast cancer, FISH method (Objective: CFI Plan Apochromat 100x Oil)

Photos courtesy of: Hironao Kusakari, Diagnostic Pathology, St. Marianna University Hospital

- Full 2880 x 2048 pixel: 15 fps.

- 1440 x 1024 pixel: 30 fps.

由於CMOS晶片讀取快速，再搭配快速的USB 3.0傳輸，調焦聚及移動位置時即時影像不累格。

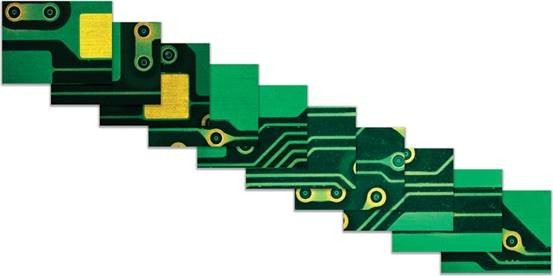

Mounting board (Objective: TU Plan Fluor 5x)

Nikon已多年的相機製造經驗，提供客戶最優質不失真的色彩呈現。透過Nikon的色彩演算技術，讓組織切片樣本更加真實。此色彩演算技術也用在您所購買的Nikon 數位相機上

Uterine cervix Pap staining (Objective: CFI Plan Apochromat λ 60x Oil)

Photos courtesy of: Kazuhiro Mita, Department of Pathology, Yokohama City University Hospital

Bone marrow (Objective: CFI Plan Achromat NCG 40x)

Photos courtesy of: Clinical Laboratory Department, Yokohama City University Hospital

透過USB3.0，直接與電腦相連。搭配NIS-Element軟體使得影像擷取更為方便。

※Other Option

沒地方擺電腦?

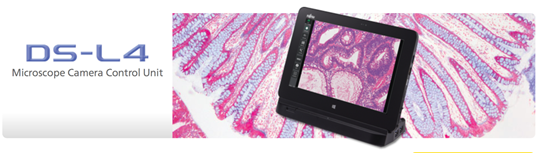

您有更好的選擇！新一代平板式影像擷取器

Image sensor	1/1.8 inch Color CMOS image sensor Size: 6.91 x 4.92 mm
Recordable pixels	All pixels: 2880 x 2048 2 vertical and 2 horizontal pixels average: 1440 x 1024
Lens mount	C-mount
ISO sensitivity (recommended exposure index)	Standard: equivalent to ISO 50 (Selectable from ISO 50 to ISO 3200 equivalent)
Live display mode* (Maximum fps)	All pixels (2880 x 2048): 15 fps 2 vertical and 2 horizontal pixels average: 30 fps (1440 x 1024): 30 fps
Exposure time	100μ sec to 30 sec
Photometry mode	Average photometry: Average intensity within the photometry area Peak photometry: Maximum intensity within the photometry area
Exposure control	One-time automatic exposure: Exposure time is adjusted automatically for one-time within the optimum range for the camera Continuous automatic exposure: Automatic exposure adjustment is performed continuously to keep the exposure within the camera Manual exposure: Exposure time and gain settings are made manually
Exposure correction	Average metering: ±1EV, Step: 1/6EV Peak hold metering: -1EV to ±0EV
Interface	USB3.0 (connect with PC, DS-L4) x1, External trigger x1
Power Supply	AC100-240V 50Hz/60Hz
Power Consumption	4.8W
Dimensions	100 (W) x 66 (D) x 65 (H) mm
Weight	400g (approx.)
Operating environment	0-40°C , 60% RH max. (without condensation)

* Maximum frame rate depends on exposure time
